Cover and lenses

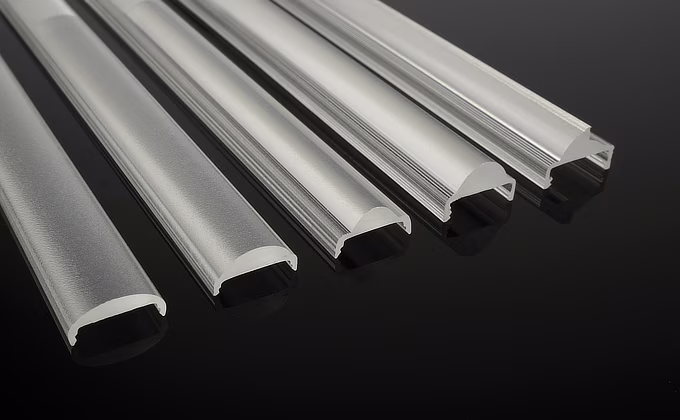

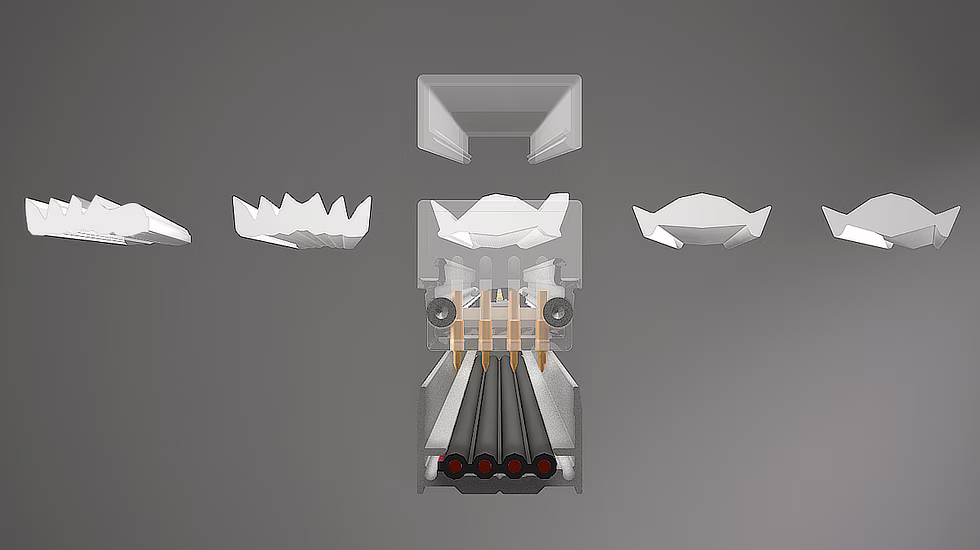

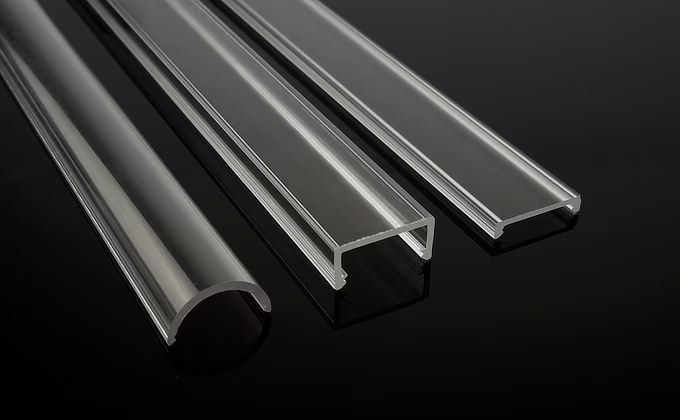

The FLASHAAR® NauticProfil® light inserts are available with covers in round, square and flat versions and each with a 120° beam angle. There are also various lenses with symmetrical and asymmetrical light emission to choose from.

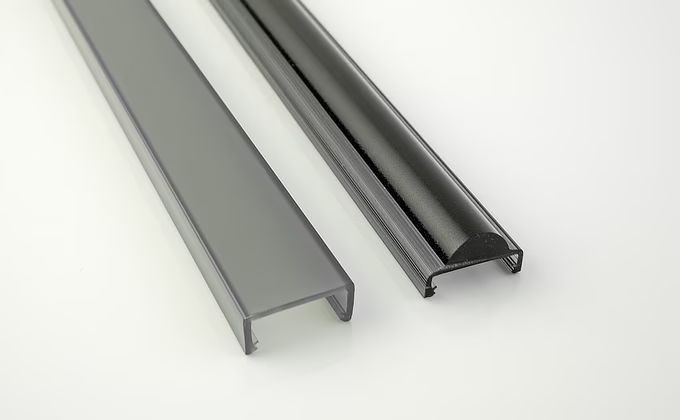

A special feature is the “grey” cover: it has the effect of appearing black when the light is switched off and cannot be seen.
Our new asymmetrical lens “ILAF” is optimized for use in handrails in combination with an impact-resistant or UV-resistant square cover and our unique premium coating. The feel of a handrail is not disturbed by a linear lens protruding from the grooved tube. Our square cover allows for a flat, smooth and clean finish to the groove.
Also new is the cover with microprismatics , which guarantees excellent light output with low glare.
Various colors and vandal-proof versions (impact-resistant according to IK10) made of polycarbonate complete the offer.
Cover round
Cover colors and transmittance
90%
40%
material
PMMA (standard)
PC

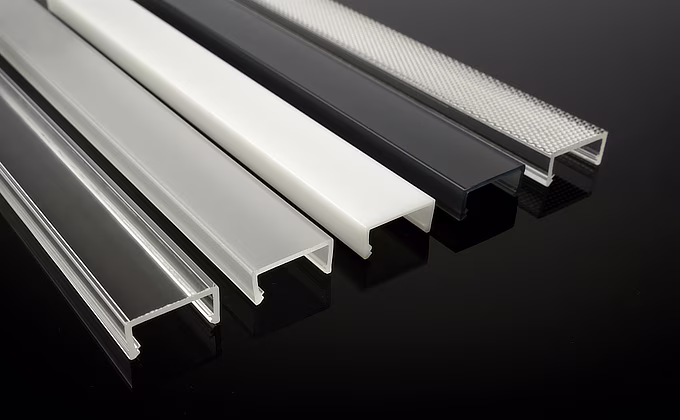

Cover square
Cover colors and transmittance
91%
83%
47%
33%
material
PMMA (standard)
PC
Cover flat
Cover colors and transmittance
87%
79%
44%
material
PMMA (standard)
PC
Cover Square Microprismatic
Cover colors and transmittance
73%
material
PMMA (standard)
PC
Lens 90°
Cover colors and transmittance
92%
88%
material
PMMA (standard)
PC
Lens 60°
Cover colors and transmittance
93%
89%
material
PMMA (standard)
PC
Lens 30°
Cover colors and transmittance
87%
84%
material
PMMA (standard)
PC
Lens 15°
Cover colors and transmittance
84%
material
PMMA (standard)
Lens LAF-2
Cover colors and transmittance
84%
material
PMMA (standard)
ILAF
Cover colors and transmittance
53%
material
PMMA (standard)
PMMA: Polymethyl methacrylate (abbreviation PMMA, also acrylic glass) is a transparent thermoplastic.
Cover colors and transmittance: The values shown are average values.
The actual efficiency with cover or lens also depends on the geometry of the profile and the LED series. For exact information, please refer to the photometric measurements (ldt, ies) at flashaar.de
Polycarbonate (PC): impact-resistant IK10, vandal-proof. Details on request.
