NP
Extension-1
G1

Swiveling light lines for flexible lighting


The NP Extension-1 G1 allows the luminaire to be tilted in 15° increments within a range of -105° to +105°. This enables the luminaire's tilt to be optimally adjusted to various lighting requirements.

The NP Extension-1 G1 features a socket into which the fully pre-assembled NP light inserts from our portfolio can be quickly and easily "clicked" using their piercing contacts, thanks to the proven plug-and-play principle. Replacing the NP light inserts is also effortless.

Download data sheet

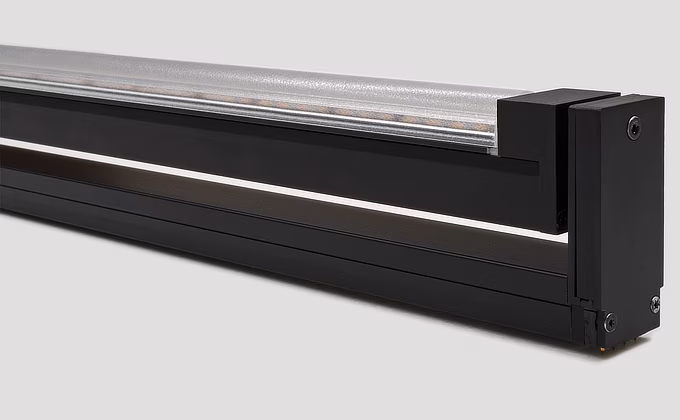

Extension-G1 0-degree

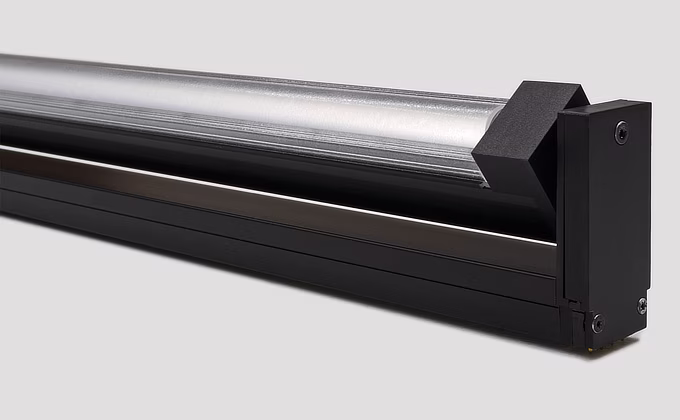

Extension-G1 30-degree

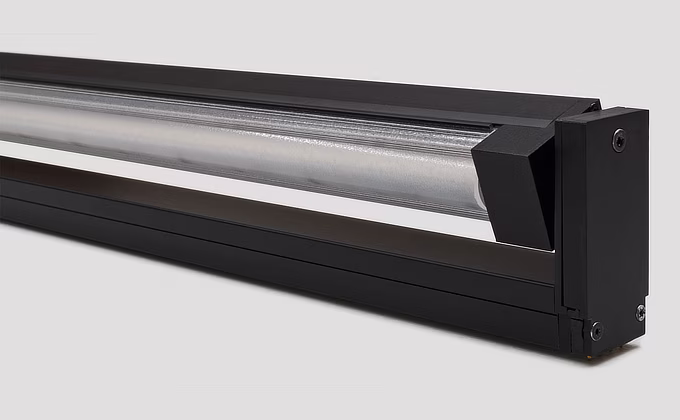

Extension-G1 105-degree

    NP
    Extension-1
    G2

    Swiveling, flexible lighting without glare


    Our NP Extension-1 G2 allows the luminaire to be tilted in 15° increments within a range of -105° to +105°. The additional lateral glare control of the luminaire inserts in the base profile-2 enables a UGR < 19 in C90.

    The NP Extension-1 G2 features a socket into which the fully pre-assembled NP light inserts from our portfolio can be quickly and easily "clicked" using their piercing contacts, thanks to the proven plug-and-play principle. Replacing the NP light inserts is also straightforward.

    Download data sheet

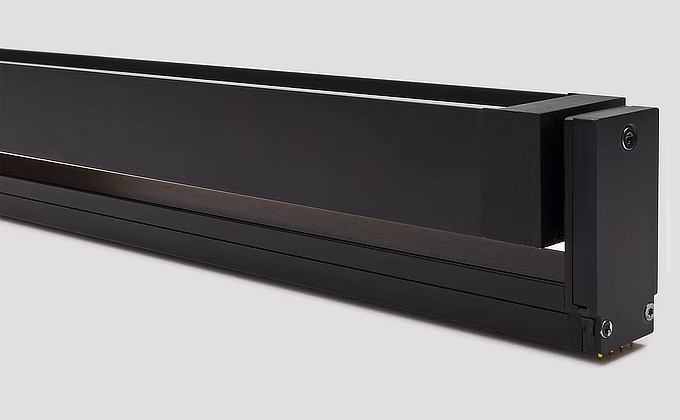

    Extension-G2 0-0 degrees

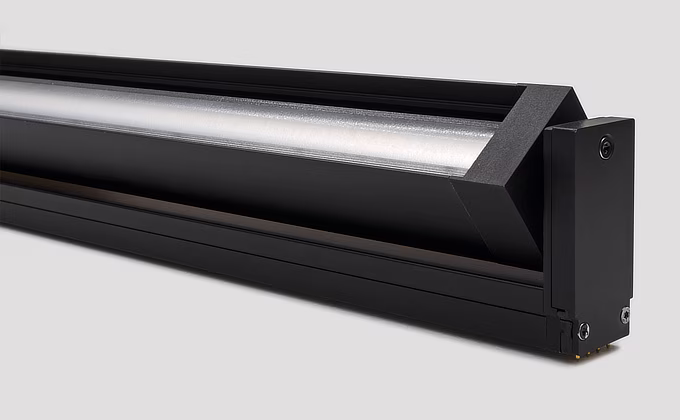

    Extension-G2 30-degree
    Extension-G2 105-degree
      Drawing G1 and G2
      Drawing Extension
