NauticNanoProfilNauticNanoProfil dimensions

NauticNanoProfil S1

The solution for long light lines and delicate luminaires

We have revised and optimized our NauticNanoProfil S1, making it perfectly equipped to meet the individual requirements of numerous application areas.

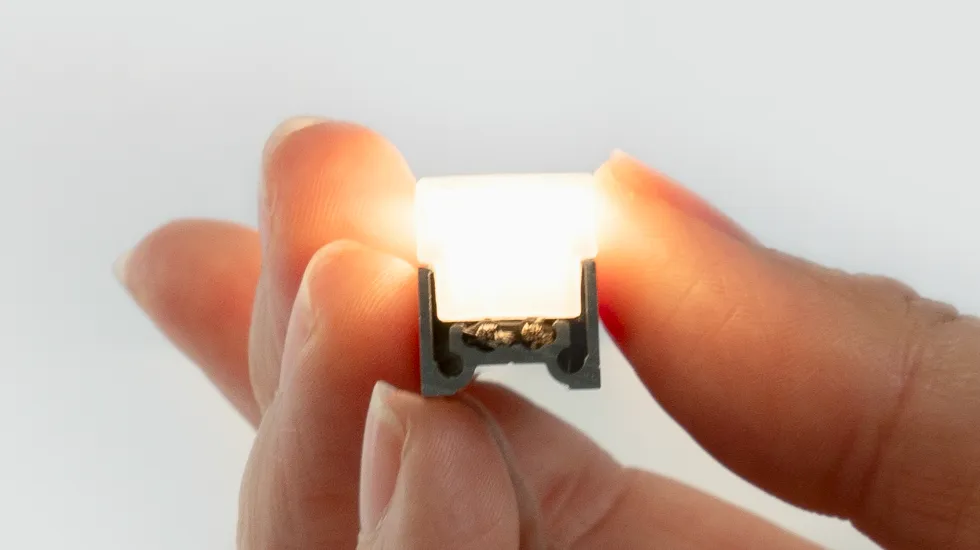

Above all, the FLASHAAR ® NauticNanoProfil S1 with its extremely filigree design of 12 x 14.26 mm (W x H) and thus finds space in the smallest niche.

As a flat surface-mounted profile with proven plug & play technology, it is ideal for decorative lighting of display cases, counters, kitchens, furniture, stairs, and handrails. As with the NauticProfil®, which has been successful for decades, we ensure the highest quality materials.


Assembly

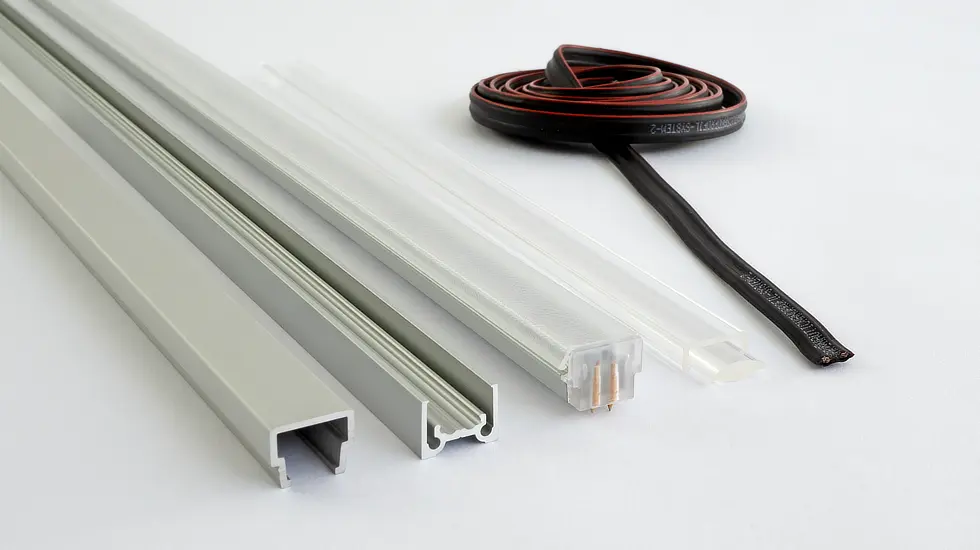

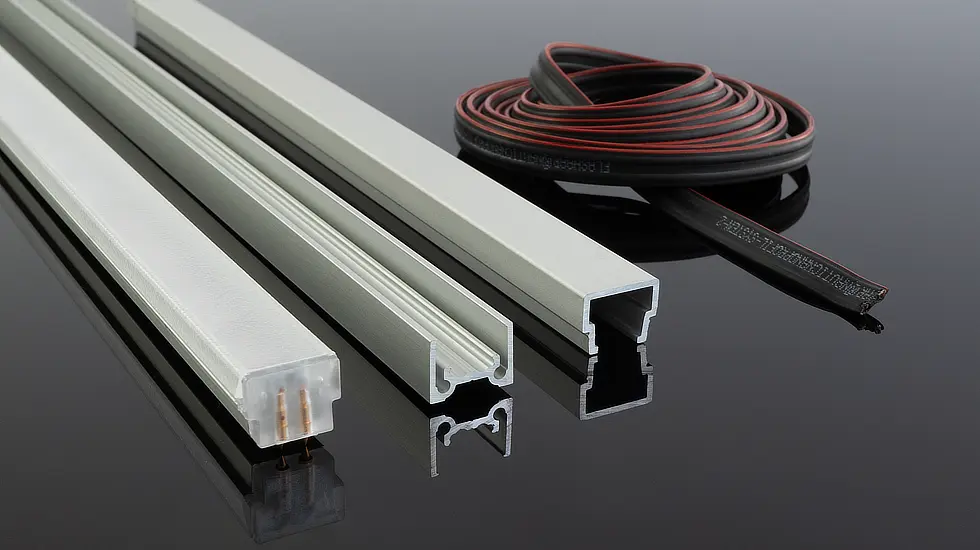

Our NauticNanoProfil is made of extruded, anodized aluminum with an integrated self-healing NNP flat cable. This minimalist, lightweight profile can be easily installed with mounting adhesive.


NauticNanoProfile assembly with adhesiveNauticNanoProfil assembly situation

Download data sheet NNP System
NNP Horizon

920 lm/m* | CRI > 90 | 2700K | 27 m per feed-in

NauticNanoProfil Horizon

Excellent light quality despite minimalist design

The realization of discreet light lines with excellent light quality, outstanding color rendering (Ra > 90) and high energy efficiency reaches new dimensions with the NNP Horizon .

Brilliant and highly efficient light that sets accents and draws attention—perfect for use wherever small is a constant. Ideal lighting for counters, ships, yachts, mobile homes, and much more.

color temperature

WW 2200 K **

WW 2700K

WW 3000K

NW 4000K

CRI type.

85

95
95
95

Lumen flux typ.*

920 lm/m

2540 lm/m
2540 lm/m
2540 lm/m
822
927

930

940

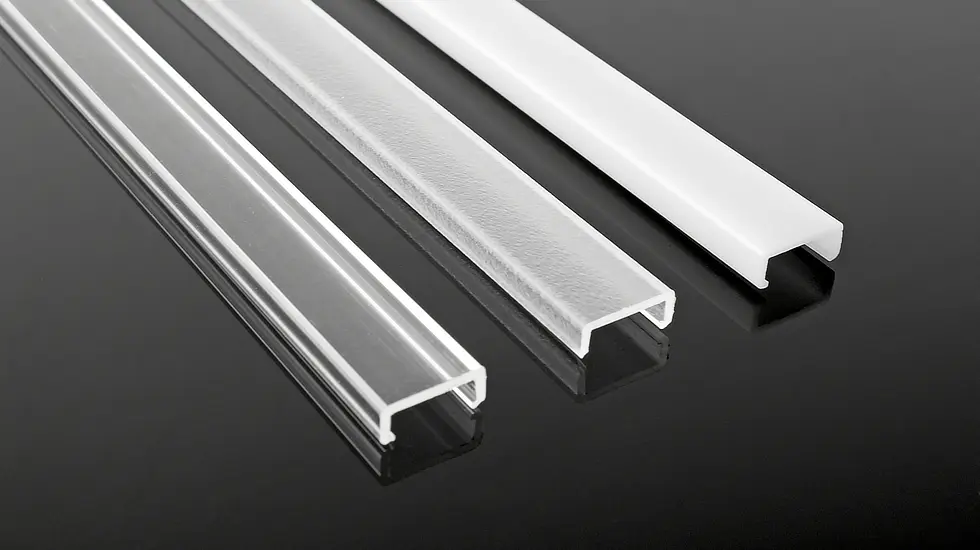

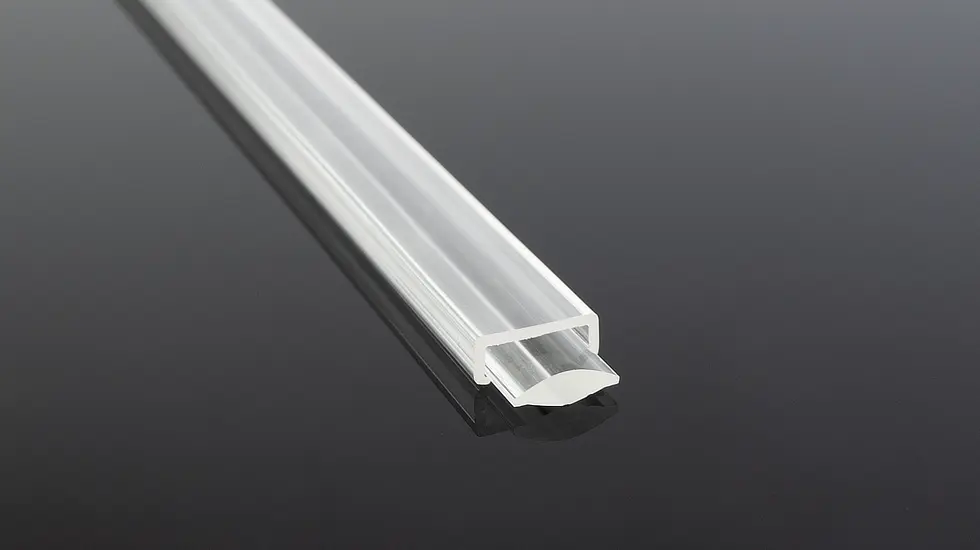

* All information on the lumen flow refers to the light source. In combination with covers / lenses, there is a material-related loss of light.

** Color temperature on request

Technical specifications

Rated voltage:
24 V DC (Range: 21.6 to 26.4 V DC)
Nominal wattage:
9.2 W/m
Photometric code:
927/339; CRI > 95
Luminous efficiency [typ.]:
108 lm/W
LED service life:
L90/B10 > 60,000 h
Dimmable:
Pulse Width Modulation (PWM)
Length dividing matrix:
50mm
LED pitch:
7.14 mm, 140 LEDs/m
Max. length per feed-in:
L(max) DIMMED = 27 m (308 W)

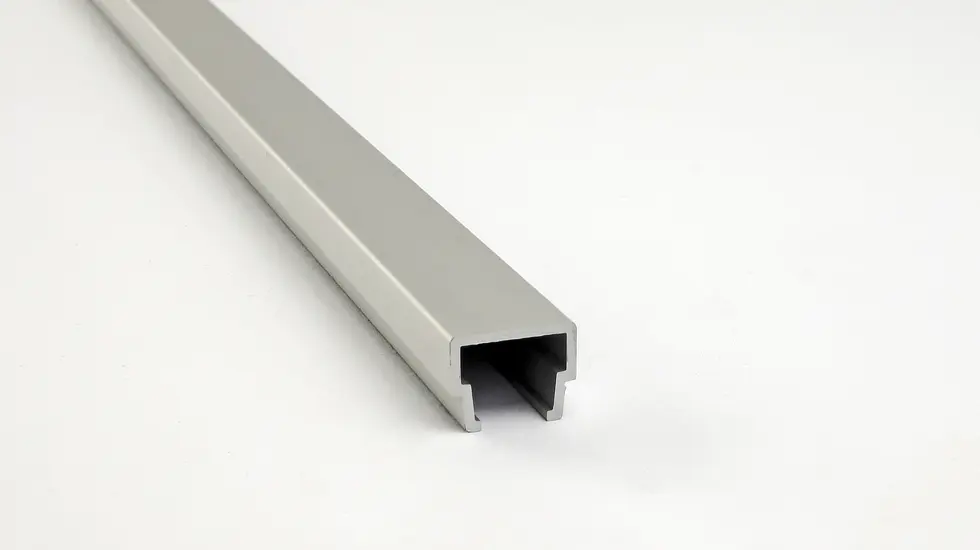

NNP blind profile

NauticNanoProfil Blind

Hochwertige Nano-Profilabdeckung

As a design element in combination with our lighting inserts, mitered as a cladding for corner solutions, or standalone as a high-quality cable duct: Our blind insert is perfectly matched to the NauticNanoProfil system.

The NNP Blind Insert Square is designed to fit NNP Line luminaire inserts with square covers. The NNP Blind can also be used to neatly conceal sections of the mounting profiles that only contain the flat cable.
